There are three types of beacons used to transmit distress signals, EPIRBs (for maritime use), ELTs (for aviation use), and PLBs  (used for land-based applications).

Read below to find out more on these types of beacons…


Emergency Position Indicating Radio Beacon (EPIRB)

EPIRBS are for use in maritime applications. There are two types of EPIRB. One type transmits an analog signal on 121.5 MHz. The other type transmits a digital identification code on 406 MHz and a low-power "homing" signal on 121.5 MHz.

The 406 MHz EPIRBs are divided into two categories. Category I EPIRBs are activated either manually or automatically. The automatic activation is triggered when the EPIRB is released from its bracket. Category I EPIRBs are housed in a special bracket equipped with a hydrostatic release. This mechanism releases the EPIRB at a water depth of 3-10 feet. The bouyant EPIRB then floats to the surface and begins transmitting. If you own a Category I EPIRB, it's very important that you mount it outside your vessel's cabin where it will be able to "float free" of the sinking vessel.

Category II EPIRBs are manual activation only units. If you own one of these, it should be stored in the most accessible location on board where it can be quickly accessed in an emergency.

If you have a 406 MHz EPIRB their signal can be instantly detected by geostationary satellites. This means that even a brief inadvertant signal can generate a false alert. To avoid getting a call from the Coast Guard make sure that when you test your EPIRB you follow the manufacturer's recommendations carefully. Or, follow these guidelines for general beacon testing & inspecting procedures.

Also, make certain that you register your EPIRB. If for some reason your beacon does activate inadvertently and it is registered, the call you receive from the Coast Guard will be a friendly one. If it is not registered, it may not be quite so friendly. More importantly, registration will help rescue forces find you faster in an emergency and allow you to make an important contribution to the safety of others by not needlessly occupying SAR resources that may be needed in an actual emergency. If you need to register a 406 MHz EPIRB, you can now register online or you may download a beacon registration form from the registration website and then fax the form to us at: (301) 568-8649.  For any other registration questions, please call us at:  1-888-212-SAVE (7283).

All 121.5 MHz EPIRBs, often referred to as Category B (or “Mini B's) are manual activation units. Although these units do work with the low-earth orbiting satellite system, they do not work as well as 406 MHz beacons, and they can not be detected by the geostationary satellites that provide instantaneous alerting for 85% of the globe. Furthermore, 121.5 MHz beacons are a large source of wasted effort by SAR forces. Most 406 MHz false alerts can be resolved easily with a phone call. In contrast, every 121.5 MHz false alert must be tracked to the source using direction finding equipment.  These reasons (and more) have lead the International Cospas-Sarsat Program to phaseout 121.5 MHz satellite alerting on February 1st, 2009 .  Thus, if you have a 121.5 MHz EPIRB it will no longer work with the Cospas-Sarsat Satellites after that date and you will need to make the switch to a 406 MHz EPIRB!

For more information on the differences between 121.5 MHz Beacons and 406 MHz beacons click to view a Comparison.

The U.S. Coast Guard has an outstanding website with even more information on EPIRBs, including some that work through the INMARSAT System.  Click here to view the Coast Guard EPIRB Homepage.

Back to FCC page
To Digital Selective Calling page

Emergency Locator Transmitters (ELTs)

ELTs were the first emergency beacons developed and most U.S. civil aircraft are required to carry them. ELTs were intended for use on the 121.5 MHz frequency to alert aircraft flying overhead. Obviously, a major limitation to these is that another aircraft must be within range and listening to 121.5 MHz to receive the signal. One of the reasons the Cospas-Sarsat system was developed was to provide a better receiving source for these signals. Another reason was to provide location data for each activation (something that overflying aircraft were unable to do).

Different types of ELTs are currently in use. There are approximately 170,000 of the older generation 121.5 MHz ELTs in service. Unfortunately, these have proven to be highly ineffective. They have a 97% false alarm rate, activate properly in only 12% of crashes, and provide no identification data. In order to fix this problem 406 MHz ELTs were developed to work specifically with the Cospas-Sarsat system. These ELTs dramatically reduce the false alert impact on SAR resources, have a higher accident survivability success rate, and decrease the time required to reach accident victims by an average of 6 hours.

Presently, most aircraft operators are mandated to carry an ELT and have the option to choose between either a 121.5 MHz ELT or a 406 MHz ELT. The Federal Aviation Administration has studied the issue of mandating carriage of 406 MHz ELTs. The study indicates that 134 extra lives and millions of dollars in SAR resources could be saved per year. The only problem is that 406 MHz ELTs currently cost about $1,500 and 121.5 MHz ELTs cost around $500. It's easy to see one reason for the cost differential when you look at the numbers. However, no one can argue the importance of 406 MHz ELTs and the significant advantages they hold.

For more information on the differences between 121.5 MHz Beacons and 406 MHz beacons click to view a Comparison.

Due to the obvious advantages of 406 MHz beacons and the significant disadvantages to the older 121.5 MHz beacons, the International Cospas-Sarsat Program have made a decision to phaseout 121.5 MHz satellite alerting on February 1st, 2009.  All pilots are highly encouraged both by NOAA and by the FAA to consider making the switch to 406!

If you need to register a 406 MHz ELT, you can now register online or you may download a beacon registration form from the registration website and then fax the form to us at: (301) 568-8649.  For any other registration questions, please call us at:  1-888-212-SAVE (7283).

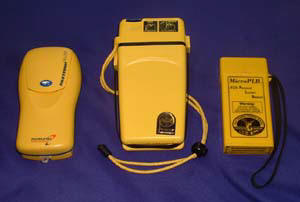

Personal Locator Beacons (PLBs)


PLBs are portable units that operate much the same as EPIRBs or ELTs. These beacons are designed to be carried by an individual person instead of on a boat or aircraft. Unlike ELTs and some EPIRBs, they can only be activated manually and operate exclusively on 406 MHz. And like EPIRBs and ELTs all PLBs also have a built-in, low-power homing beacon that transmits on 121.5 MHz. This allows rescue forces to home in on a beacon once the 406 MHz satellite system has gotten them "in the ballpark" (about 2-3 miles).Some newer PLBs also allow GPS units to be integrated into the distress signal.This GPS-encoded position dramatically improves the location accuracy down to the 100-meter level…that’s roughly the size of a football field!

In the United States , PLBs are now authorized for nationwide use.  This authorization was granted by the FCC beginning July 1st, 2003.  (Check out the ‘What’s New @ SARSAT’  for more information on this recent development.)

Prior to July 1st, 2003 only residents of Alaska had been able to use PLBs. The Alaska PLB Program was set up to test the capabilities of PLBs and their potential impact on SAR resources. Since March of 1995, the experiment proved very successful and helped save nearly 400 lives while generating only a few false alerts. The success of the Alaska PLB program undoubtedly paved the way for nationwide usage of these devices.

If you need to register a 406 MHz PLB, you can now register online or you may download a beacon registration form from the registration website and then fax the form to us at:                   (301) 568-8649.  For any other registration questions, please call us at:  1-888-212-SAVE (7283).

Back to FCC page
To Digital Selective Calling page

  History of technology

The beginnings of Sarsat date back to 1970 when a plane carrying two U.S. congressmen crashed in a remote region of Alaska. A massive search and rescue effort was mounted, but to this day, no trace of them or their aircraft has ever been found. In reaction to this tragedy, congress mandated that all aircraft in the United States carry an Emergency Locator Transmitter (ELT). This device was designed to automatically activate after a crash and transmit a homing signal.

Since satellite technology was still in its infancy, the frequency selected for ELT transmissions was 121.5 MHz, the international aircraft distress frequency. This system worked, but had many limitations. The frequency was cluttered, there was no way to verify who the signal was originating from, and most importantly, another aircraft had to be within range to receive the signal.

After several years, the limitations of ELTs began to outweigh their benefits. At that time, a satellite based system was conceived. It would operate on a frequency reserved only for emergency beacons (406 MHz), it would have a digital signal that uniquely identified each beacon, and it would provide global coverage.

The SARSAT system was developed in a joint effort by the United States, Canada, and France. In the United States, the SARSAT system was developed by NASA. Once the system was functional, its operation was turned over to NOAA where it remains today.

As the system began to take hold, more and more emergency beacons found their way onto the market. ELTs continued to operate exclusively on 121.5 MHz, but maritime beacons (EPIRBs) were being built that operated on 406 MHz. The U.S. Coast Guard in their role as maritime search and rescue specialists immediately began to see the benefits of 406 MHz, and in 1990, took proactive steps to bring it into widespread usage. As a result, today there are over 75,000 EPIRBs in the NOAA 406 MHz Registration Database. With 406 MHz ELTs and PLBs the number of 406 MHz Emergency Beacons registered now totals over 82,000! Is your beacon registered too???

A similar system, COSPAS, was developed by the Soviet Union. The four nations, United States, Canada, France and the Soviet Union banded together in 1979 to form Cospas-Sarsat. In 1982, the first satellite was launched, and by 1984 the system was declared fully operational.

Although Cospas-Sarsat satellites were primarily designed to function on the much improved 406 MHz frequency, they still had to make a provision for the thousands of 121.5 MHz beacons already in use. For this reason, the satellites were designed to receive 121.5 MHz as well.

Since that time, however, 121.5 MHz beacons have become a source of cronic false alerts. Not to mention, they are not as accurate nor as advanced as the improved 406 MHz beacons. Because of their continual problems a decision was made internationally that on February 1, 2009 the Cospas-Sarsat satellites will no longer detect any 121.5 MHz beacons.

The Cospas-Sarsat organization also continued to grow. The four original member nations have now been joined by 29 other nations that operate 45 ground stations and 23 mission control centers worldwide or serve as Search and Rescue Points of Contact (SPOCs). Cospas-Sarsat continues to be a model of international cooperation. During the eighties, the Soviet Union and the United States were able to put aside their Cold War differences and tackle some tough technical questions. Today, new technology continues to evolve and the member nations are actively incorporating that technology into The Cospas-Sarsat System of Tomorrow
